13T Compressor Wheels
Ensure standard compressor wheel is matched to sizing below before purchasing.
| 13T Specifications | |
|---|---|
| Inducer | 40.7mm |
| Exducer | 58.0mm |

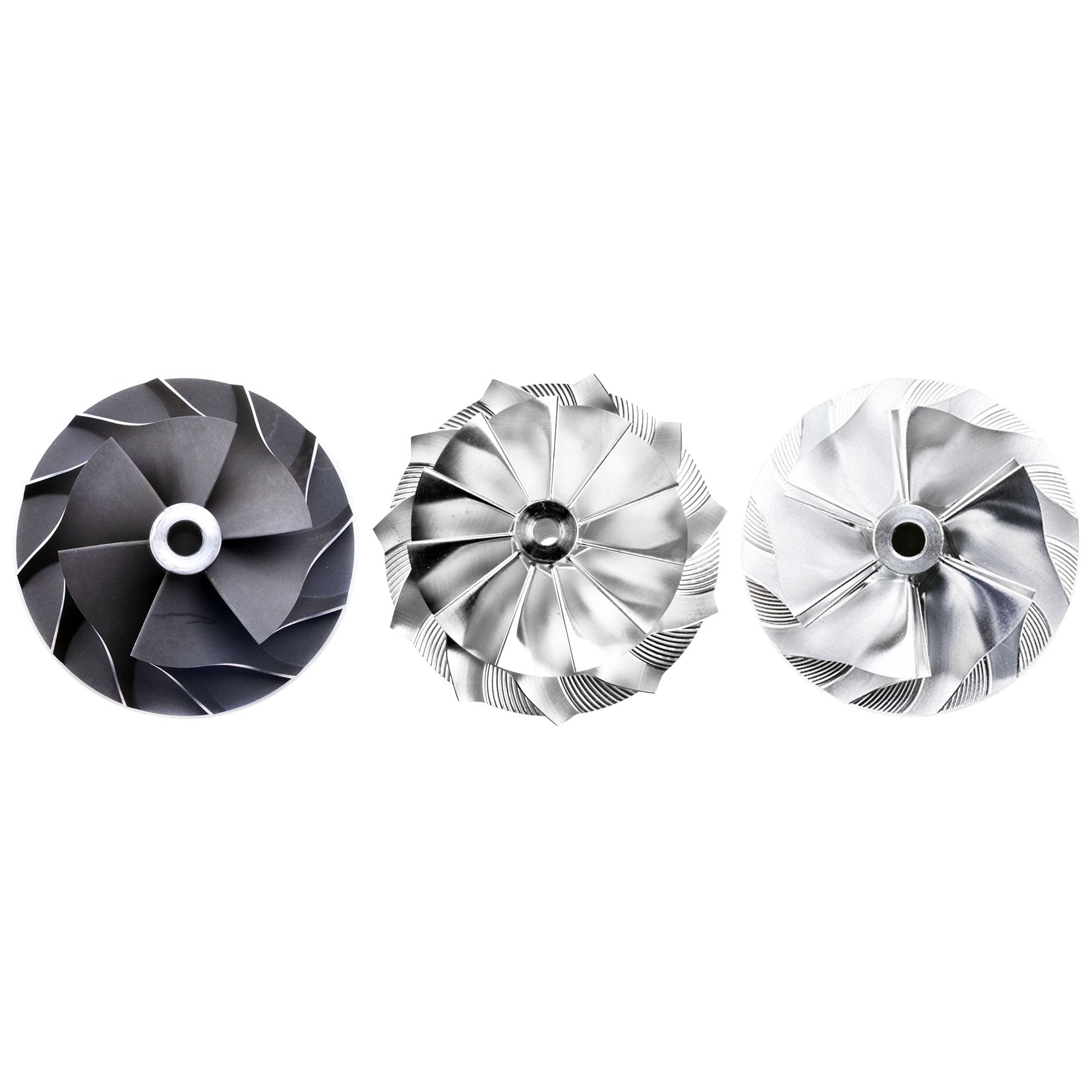

| Wheel Options | Cast 6+6, Billet 6+6, Billet 11+0 |
| Condition | Brand new, SCHENCK balanced wheel |
Each size wheel is available in cast or billet materials with multiple blade types for the billet wheels. Choose the best option for your budget and application.
| Wheel Design |  |
 |
 |
|---|---|---|---|

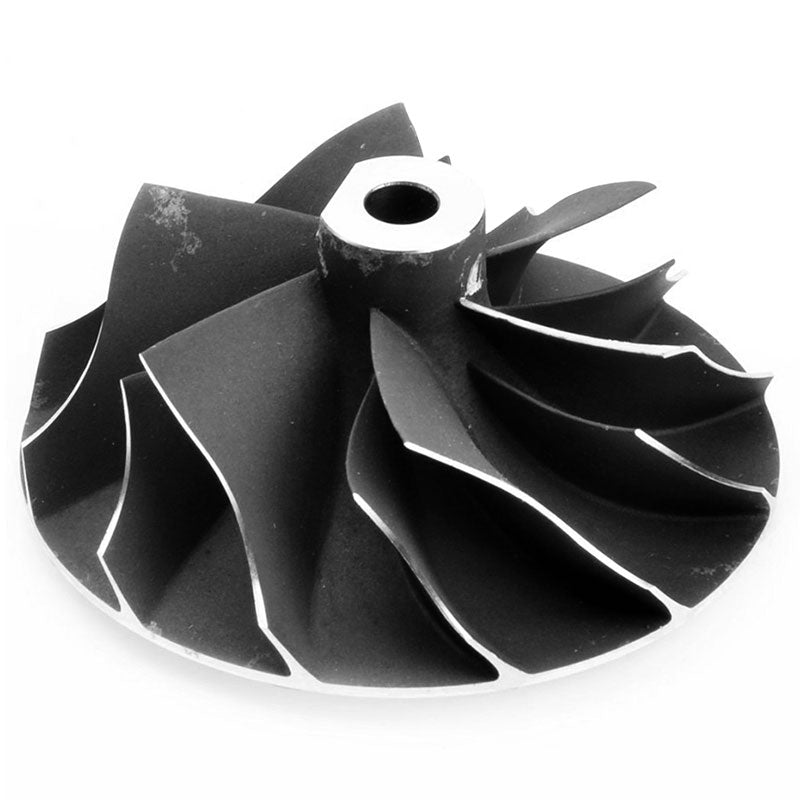

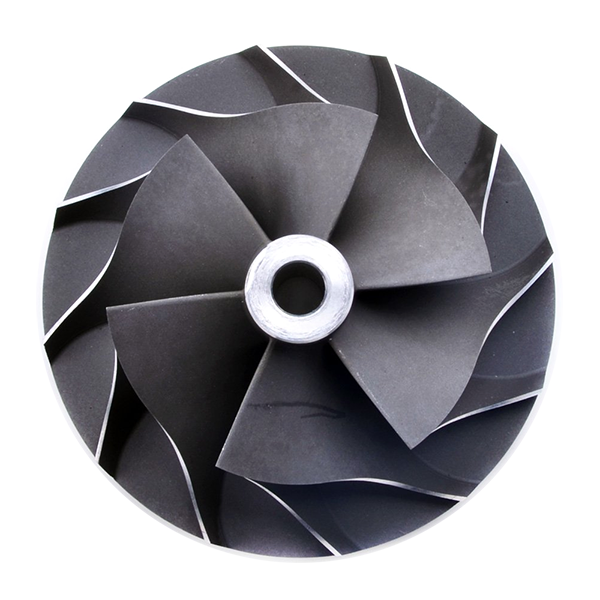

| Material | Cast | Billet | Billet |

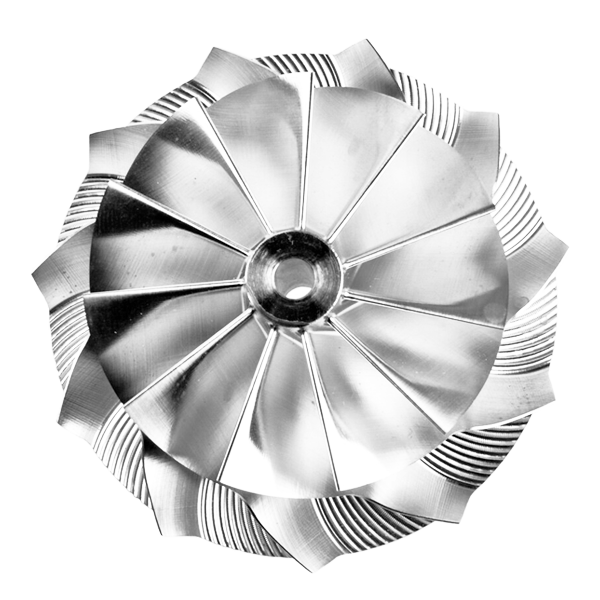

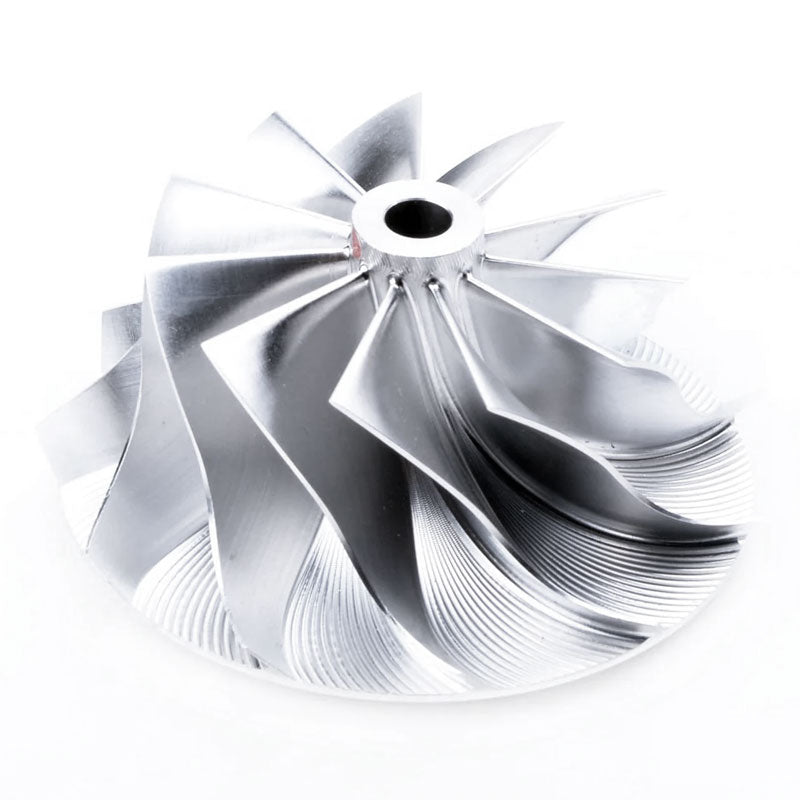

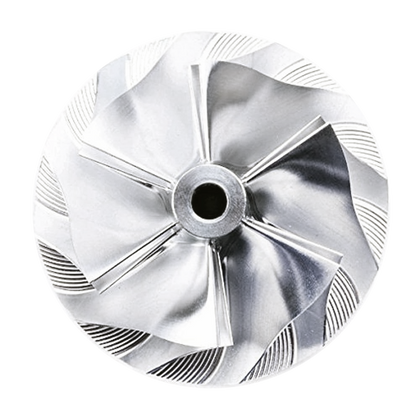

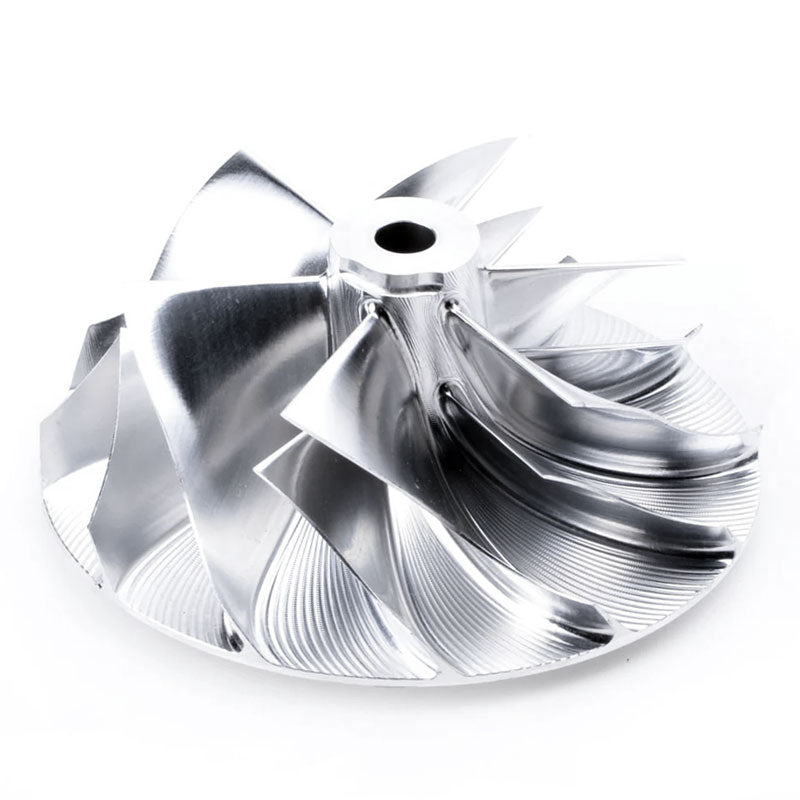

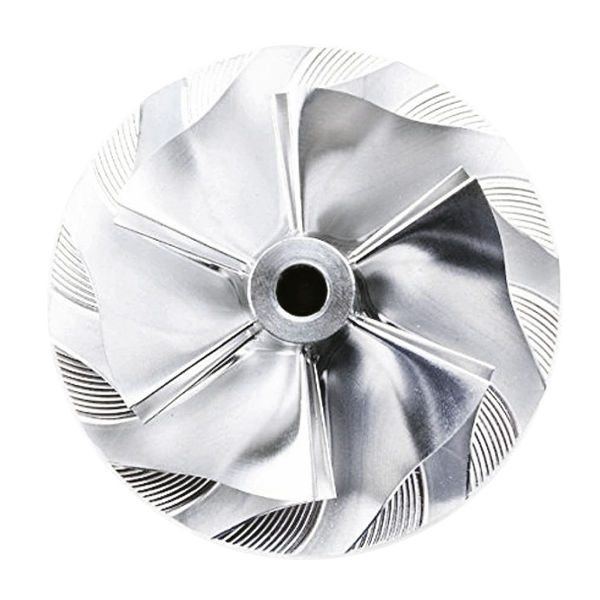

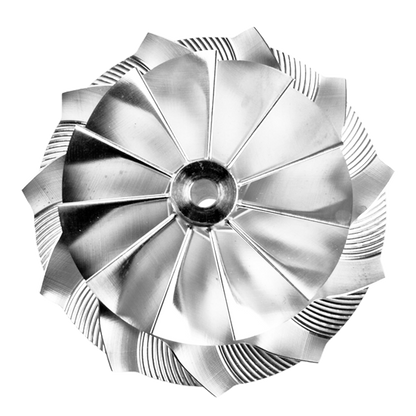

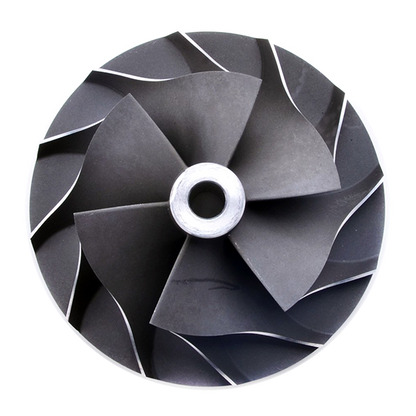

| Blade Design | 6+6 | 6+6 | 11+0 |
| Manufacturing Process | Casting | CNC Machined | CNC Machined |
| Benefit | Low-End Torque | Low-End Torque | Top-End Speed |
Important Notes When Purchasing Wheels
Purchasing a replacement compressor or turbine wheel for your turbocharger allows you to refurbish or upgrade an existing turbocharger. However, important steps must be taken to ensure the replacement wheel is compatible with your turbo and that the installation is carried out correctly.
Sizing
Turbocharger wheels can NOT be increased in size without either replacing or machining the current compressor and/or turbine housings. A larger wheel will make contact with the housing and fail if the housing is not machined to suit.
Materials
Turbocharger wheels can be changed to other materials such as Billet as long as the size remains the same. Vehicle tuning will be necessary to accommodate the change in air flow and response.
Blade Types
Wheels can be upgraded to different blade types such as a 11+0 blade as long as the size remains the same. Vehicle tuning will be necessary to accommodate the change in air flow and response.
Balancing
Although the compressor wheels are balanced the entire turbocharger will need to be checked for balancing after disassembly and reassembly as other components may have worn over time.
