| Production Information |
| Item Name |

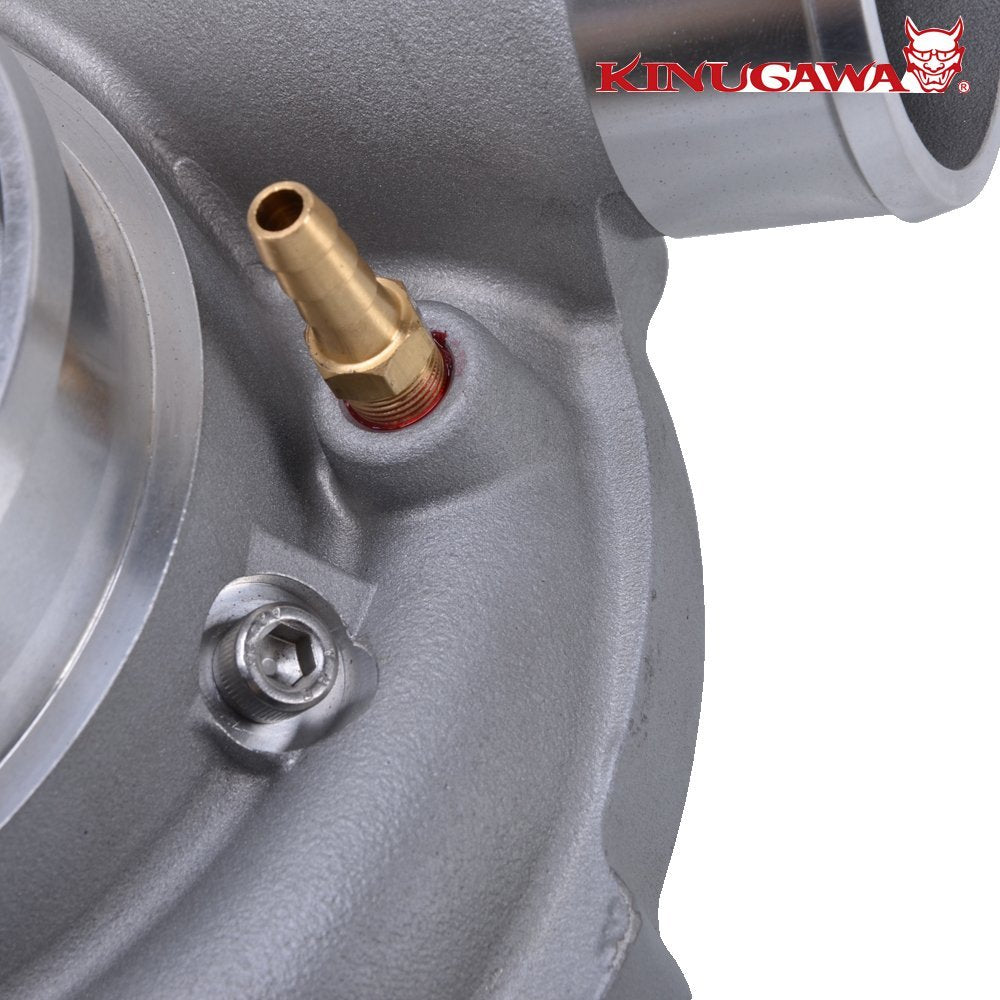

- Kinugawa Compressor Housing - GTX3071R Gen II
|
| Application |
- Garrett / Kinugawa GTX3071R Gen II Turbocharger
- Garrett P/N : 851154-5002S, 856801-5004S, 856801-5005S, 856801-5006S, 856801-5016S, 856801-5017S, 856801-5018S, 856801-5019S, 856801-5020S, 856801-5021S.
- Garrett GTX3071R Turbocharger upgrade to Gen II (Gen II Compressor wheel is necessary)
- Available with or without seal plate and hardware kit
|
| Compressor Wheel Fit |
- Compressor Wheel (Inducer/Exducer) : 54.0/71.0 mm (Trim 58)
|
| Compressor Housing |
- Compressor Inlet : 101.3 mm / 4”
- Compressor Outlet : 51mm / 2.0”
- Compressor A/R : .60
|
| Kit Includes |
- 1 x Compressor Housing
- 1 x Seal Plate kit if selected:
- 1 x seal plate
- 1 x o-ring
- 2 x lock plate
- 6 x bolt
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
